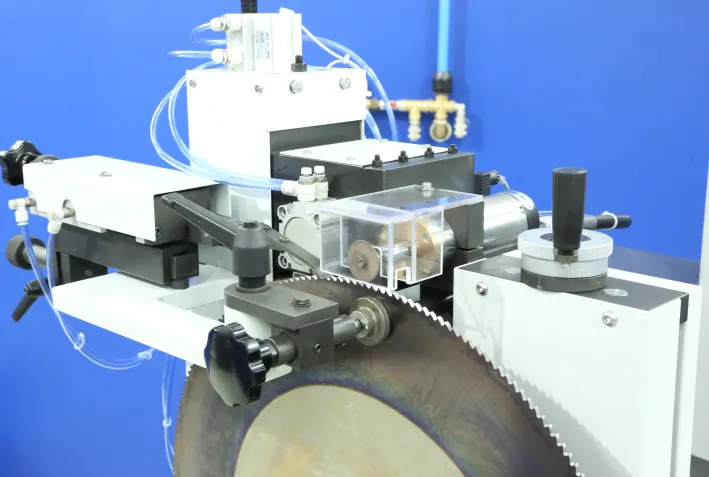

Automatic chip breaker slot grinding machine

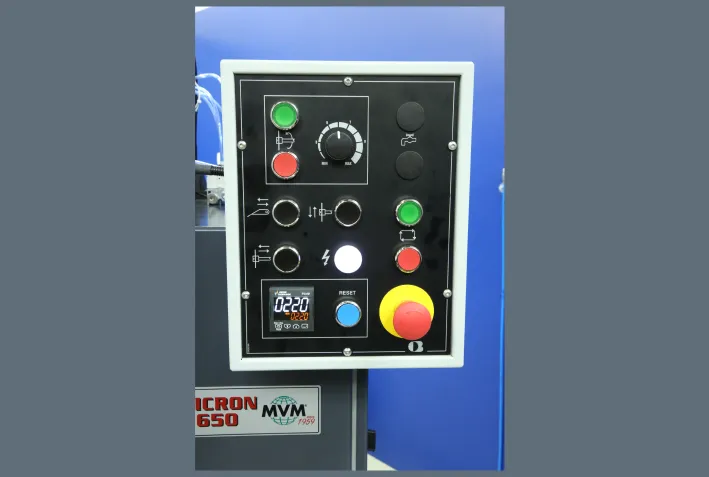

The MICRON 650 machine is controlled by PLC, it can also be programmed and used by a non-skilled operator, the setting of the machine is made using simple and precise mechanical adjustments, and push-buttons on the control panel, with sequential operations.
For the grinding of the chip breaker tooth, used for tube cutting, which guarantees higher feed speed of the circular saw blade, longer life of the circular saw blade, and better finish of the cut surface.
The grinding is completely automatic, completed in a single pass (one revolution of the circular saw blade), with automatic shutdown at the end of automatic cycle.
The grinding wheel electrospindle, is controlled by inverter, with electronicalluy variable rotation speed, for the best performance of the grinding wheel, regardless of its diameter.
Machine PLC controlled

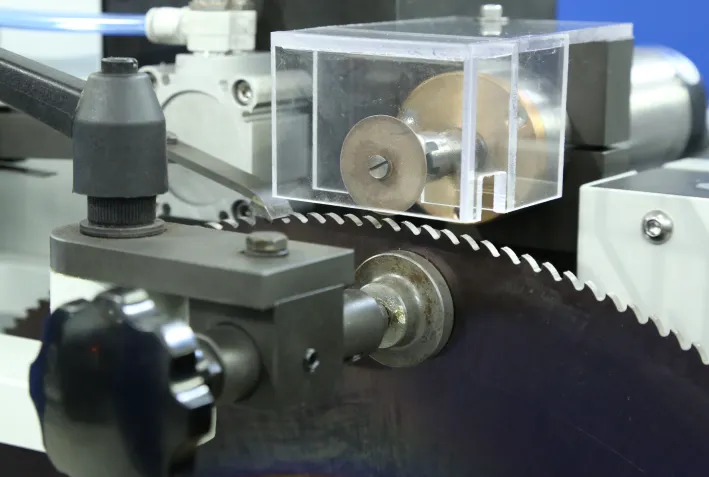

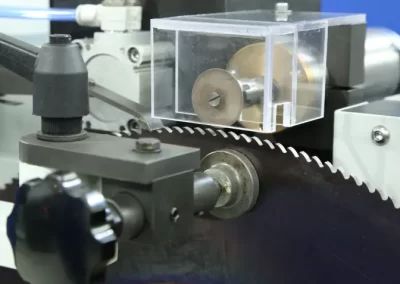

Grinding of chip breaker slots completed in a single pass

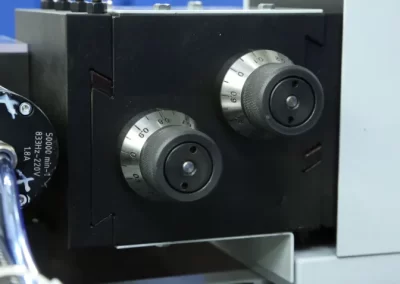

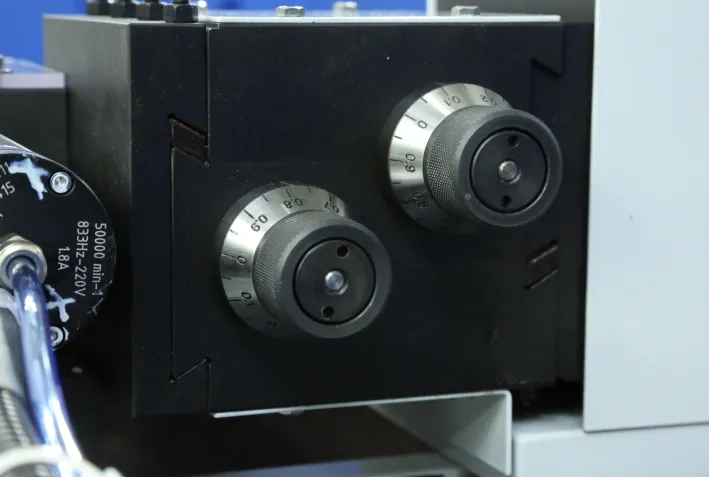

Cross traverse and depth of slots, with precise mechanical adjustments

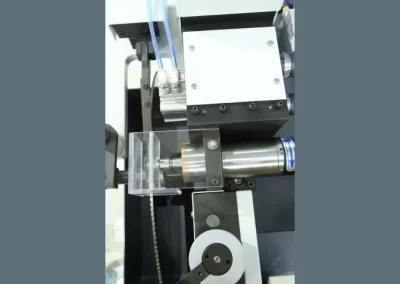

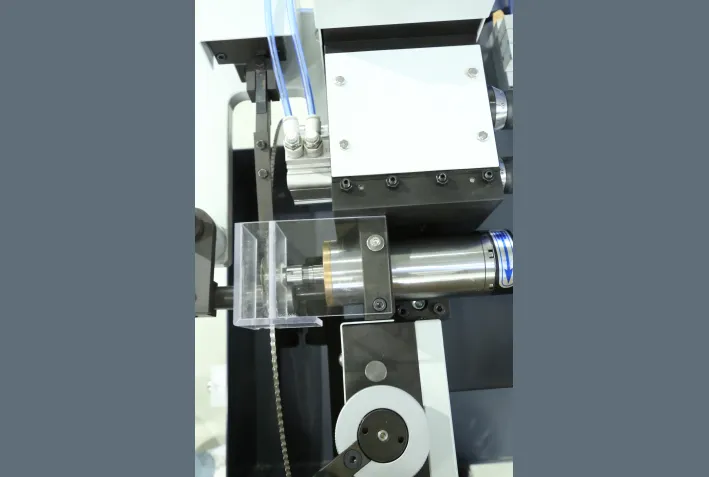

High frequency pressurized electrospindle, with electronically variable rotation speed up to 50000 rpm

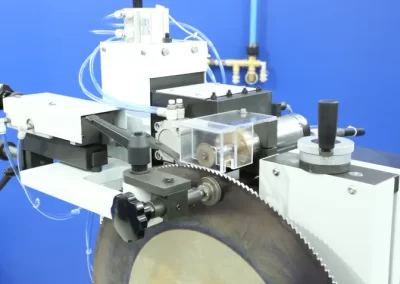

Short machine set-up times and very easy to use
Automatic shutdown on completion of operation
Very low air consumption
Low and simple maintenance
|Circular saw blade diameter||140 – 630 mm|
|Maximum tooth pitch||35 mm|
|Maximum saw blade thickness||8 mm|
|Maximum grinding wheel diameter||30 mm|
|Maximum grinding wheel thickness||0,6 mm|
|Working speed||40 teeth/min|
|Grinding wheel speed (electronically controlled)||0 - 50000 rpm|
|Air pressure||6 bar|
|Air consumption||20 litres/min|
|Installed power||0,7 kVA|
Clamping fixture for circular saw blades from 70 to 140 mm diamete
LED Lamp for grinding area lightning, adjustable for position, protection grade IP67
Spindle shaft for mounting grinding wheels with 2 mm bore size
Spindle shaft for mounting grinding wheels with 6 mm bore size
