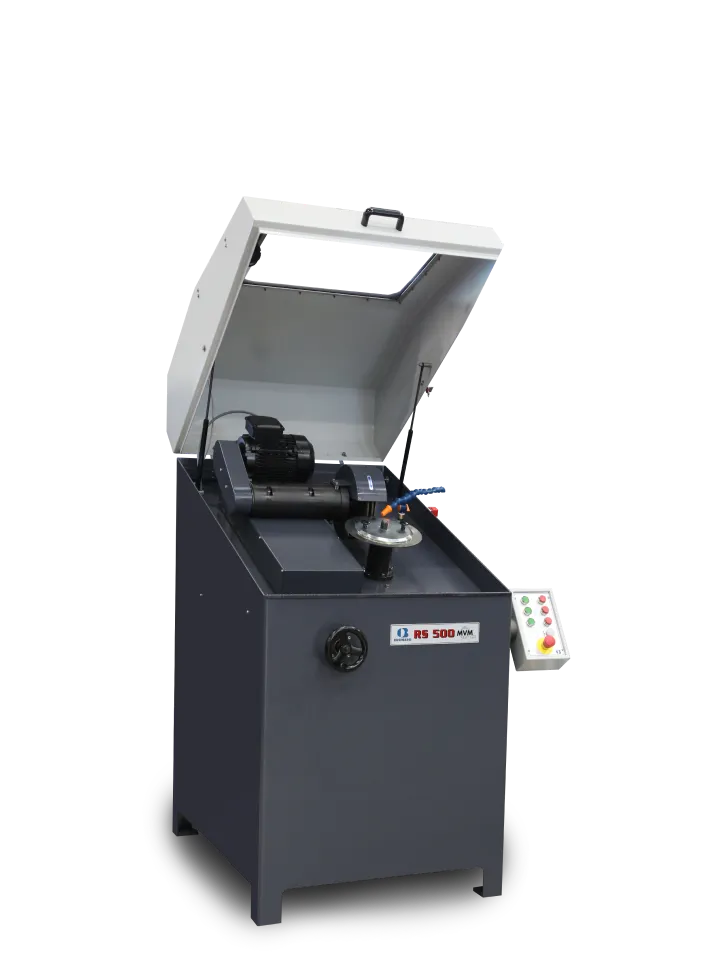

Machine for grinding down the teeth of HSS and friction circular saw blades
The RS 500 grinding machine is used for the complete removal of the teeth on HSS and friction circular saw blades, in case the saws have broken teeth.
The removal operation takes place in a short time, due to the machining with two coupled grinding wheels, the rigidity of the mechanical groups of the machine, and the rigid assembly of the circular saw with flanges.
The coolant system supplies a large quantity of coolant at the machining point, ensuring perfect cooling of the grinding, avoiding overheating of the circular saw blade, and the consequent loss of hardness.

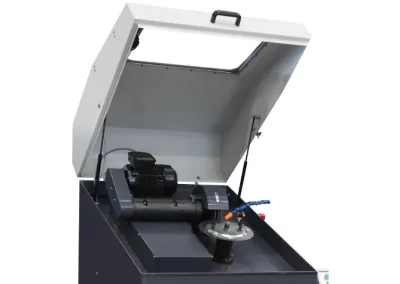

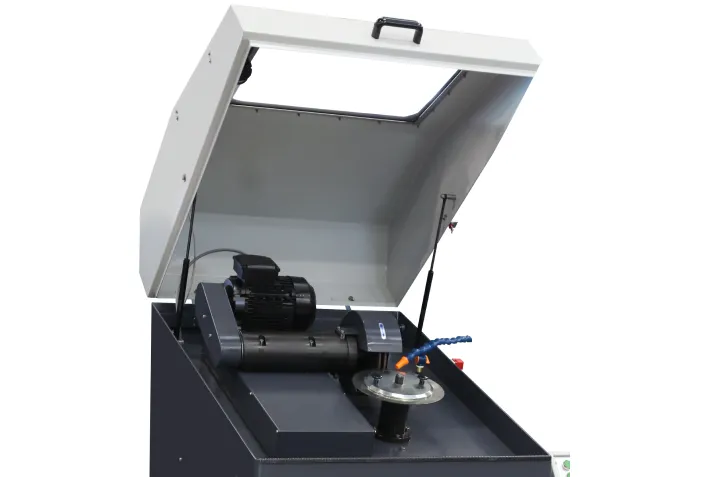

Cabin for full working area enclosure
Grinding wheels spindle, circular saw blade spindle and grinding slide extremely rigid

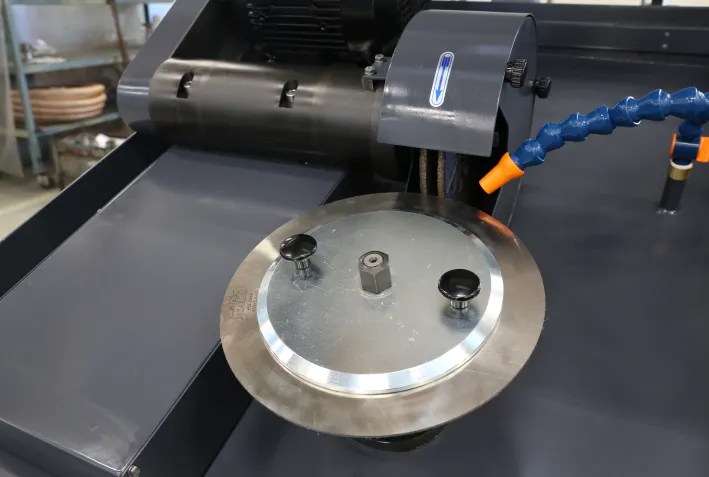

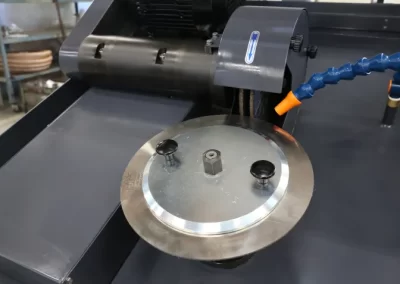

High rigidity assembly of the circular saw blade with clamping flanges

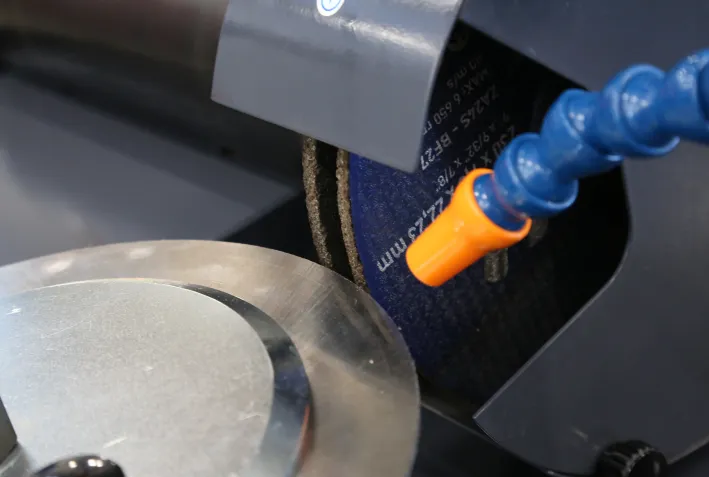

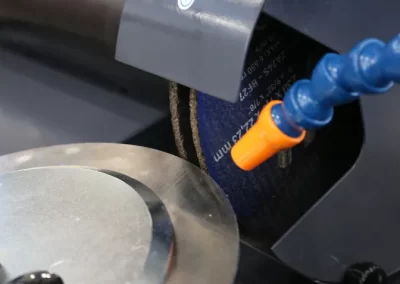

Short grinding time, for the machining with two coupled grinding wheels
Coolant system for high cooling grinding
LED tube lamp for working area lighting
Easy operation with short set-up times
Short machine set-up times and very easy to use
Low and simple maintenance
|Circular saw blade diameter||150 - 500 mm|
|Maximum grinding wheel diameter||230 mm|
|Grinding wheel bore size||22.3 mm|
|Grinding wheel speed||4000 rpm|
|Circular saw blade rotation speed||14 rpm|
|Grinding wheels motor power||2,2 kW|
|Installed power||3,5 kVA|
Machine version for circular saw blades from 210 to 630 mm diameter
Electronically controlled variable speed of saw blade rotation
Magnetic separator for coolant depuration
Magnetic separator with sludge collection
